Overview

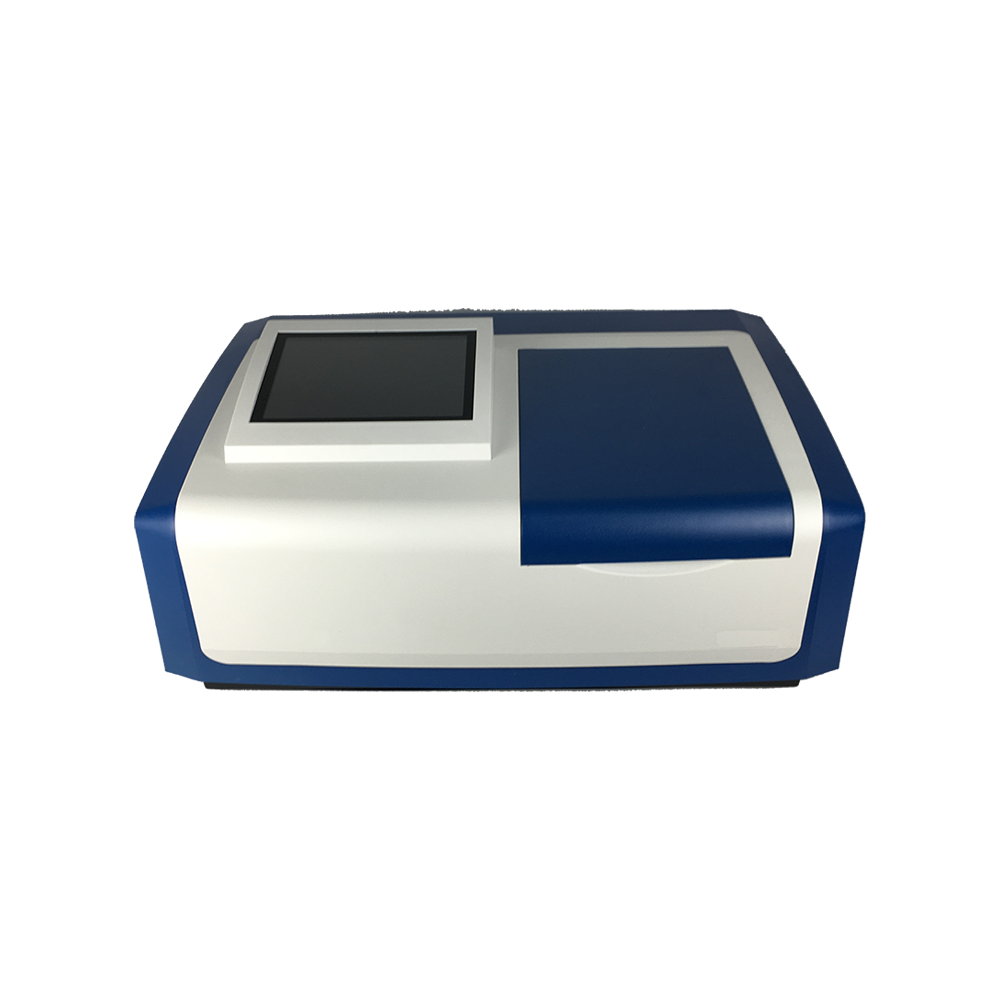

Single Beam UV VIS SpectrophotometerTRSUV-601 is a versatile device with blazed holographic gratings and an 8-inch multi-color touch-screen that allows for the setting and viewing of parameters with such a wavelength range of 190 to 1100 nm and then a frequency band bandwidth of 2 nm. The automated 8-position cuvette holder makes the operation mode easier. It has a photometric accuracy of 0.3 % T, 0.002Abs (0 to 0.5A), and a range of 0.0 to 200.0 % T, -0.301 to 4.000A, and 0.000 to 9999 C. It performs admirably in both qualitative and quantitative testing and has a stray light of ≤ 0.03%..
Specifications :
| Photometry | Split Beam |
| Monochromatic Type | Czerny-Turner |
| Focal Length | 160 mm |
| Grating | 1200 lines/mm |
| Detector | Silicon Photocell |
| Spectrum Bandwidth | 2 nm |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Repeatability | ≤ 0.2 nm |
| Photometric Range | 0.0 to 200.0% T -0.301 to 4.000A 0.000 to 9999C |
| Photometric Accuracy | ± 0.3% T ± 0.002Abs (0 to 0.5A) ± 0.004Abs (0.5 to 1A) |
| Photometric Repeatability | ≤ 0.15% T 0.001Abs (0 to 0.5A) 0.002Abs (0.5 to 1A) |
| Wavelength Scanning Speed | Fast, medium, slow |
| Baseline Flatness | ≤ ± 0.002 A |
| Stray Light | ≤ 0.03% (measured by NaI at 220 nm) (measured at NaNO2 at 360 nm) |
| Noise | 100%(T) noise ≤ 0.15% (T), 0% (T) noise ≤ 0.1% (T) |
| Baseline Drift | ± 0.0009 Abs / h (250 nm and 500 nm after preheat warm up for 2 hours ) |
| Power | AC 220 V± 22 V, 50 Hz± 1 Hz, 200 W |
| COM Port | USB |
| Packing Size | 740 mm×630 mm×450 mm |
| Weight | 0.21m³, 35kg |
Features :
- 8-inch multi-color touch-screen, advanced user interface, powerful functions, and simple operation
- It uses a split-beam survey optical system as well as a blazed holographic display
- Scanning the entire spectrum
- Linear regression analysis
- Extensive frequency band scanning
- Persistence of time-based kinetics
- Measurement of multiple wavelengths
- The zero and full scales are automatically adjusted. A USB port is included
- Gratings they have exceptional test precision and very competitive pricing
- The automated 8-position cuvette holder makes operation easier in each measurement mode
- With its powerful functions, the equipment performs admirably in both qualitative and quantitative testing
